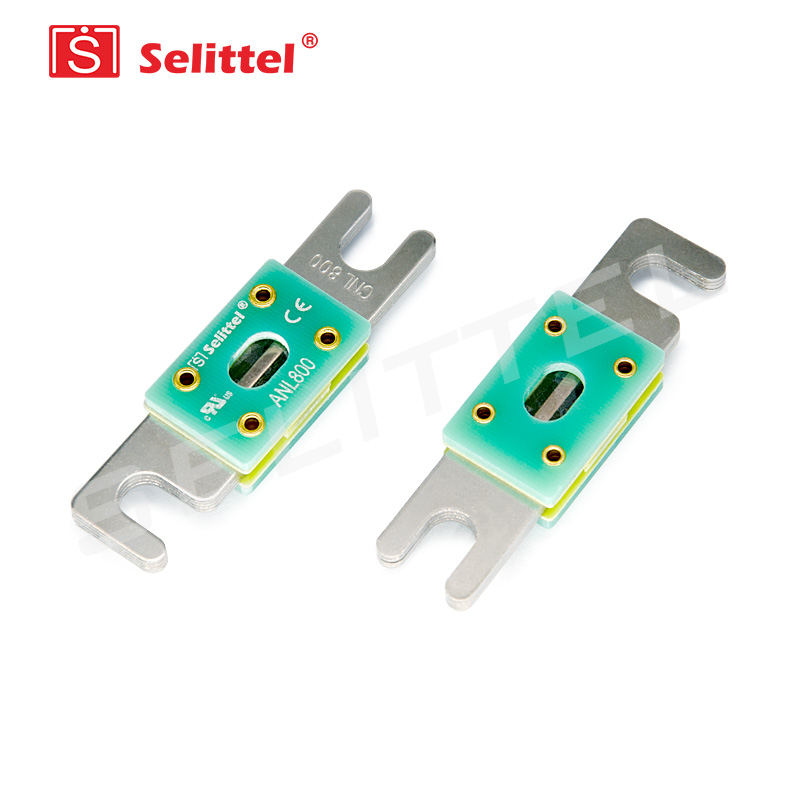

CNL

叉栓式保险丝

产品规格

品名: 叉栓式玻纤保险丝

型号: CNL

额定电流: 35A - 800A

额定电压: 80V

通过的认证:

联系我们以获得更多规格或进行定制
 规格书下载

产品描述

Selittel® CNL 系列插栓式保险丝专为低压汽车及工业电气系统设计，广泛应用于高达80Vdc电路的过载及短路保护。产品电流范围覆盖35A–800A，能够满足各种大功率电路的保护需求。
采用高强度结构和材料，配合螺栓固定式设计，CNL 保险丝在抗震动和耐热冲击方面表现更佳，能够实现更长的使用寿命和稳定性能。产品可直接固定在母线上，或配合专用保险丝座使用，方便更换与维护。
安装孔可选 M8 或 M11，适配不同的安装需求。
我们提供 CNL 快速熔断型和 CNN 特快速熔断型，适用于不同电路需求。
此外，Selittel® CNL 系列已通过 UL 认证，确保产品的安全性和可靠性。
*UL型号印字为 ANL

应用场景：
·电动汽车、叉车与改装车电气系统
·船舶与游艇电力系统
·电池充电与储能系统
·工程机械及特种车辆
·高端音响及车载音响系统

产品系列

* ● 已通过认证 ○ 未认证

产品料号	额定电流	额定电压	冷电阻(mΩ)	分断能力	安装孔尺寸	安装孔数量	*	*	材质
CNL-035	35A	80V	3.43 - 4.19	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-040	40A	80V	2.88 - 3.53	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-050	50A	80V	2.21 - 2.71	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-060	60A	80V	1.80 - 2.20	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-080	80A	80V	1.31 - 1.60	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-100	100A	80V	0.77 - 0.94	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-125	125A	80V	0.61 - 0.74	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-130	130A	80V	0.51 - 0.63	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-150	150A	80V	0.45 - 0.55	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-175	175A	80V	0.39 - 0.47	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-200	200A	80V	0.33 - 0.41	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-225	225A	80V	0.29 - 0.35	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-250	250A	80V	0.25 - 0.30	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-275	275A	80V	0.22 - 0.27	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-300	300A	80V	0.20 - 0.25	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-325	325A	80V	0.18 - 0.22	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-350	350A	80V	0.15 - 0.18	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-400	400A	80V	0.12 - 0.15	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-500	500A	80V	0.11 - 0.13	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-600	600A	80V	0.08 - 0.11	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-675	675A	80V	0.06 - 0.075	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-700	700A	80V	0.058-0.072	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-750	750A	80V	0.056 - 0.07	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-800	800A	80V	0.053 - 0.067	2700A@80Vdc / 6000A@32Vac	M8	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-035-M11	35A	80V	3.43 - 4.19	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-040-M11	40A	80V	2.88 - 3.53	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-050-M11	50A	80V	2.21 - 2.71	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-060-M11	60A	80V	1.80 - 2.20	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-080-M11	80A	80V	1.31 - 1.60	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-100-M11	100A	80V	0.77 - 0.94	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-125-M11	125A	80V	0.61 - 0.74	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-130-M11	130A	80V	0.51 - 0.63	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-150-M11	150A	80V	0.45 - 0.55	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-175-M11	175A	80V	0.39 - 0.47	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-200-M11	200A	80V	0.33 - 0.41	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-225-M11	225A	80V	0.29 - 0.35	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-250-M11	250A	80V	0.25 - 0.30	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-275-M11	275A	80V	0.22 - 0.27	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-300-M11	300A	80V	0.20 - 0.25	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-325-M11	325A	80V	0.18 - 0.22	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-350-M11	350A	80V	0.15 - 0.18	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-400-M11	400A	80V	0.12 - 0.15	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-500-M11	500A	80V	0.11 - 0.13	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-600-M11	600A	80V	0.08 - 0.11	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-675-M11	675A	80V	0.06 - 0.075	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-700-M11	700A	80V	0.058-0.072	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-750-M11	750A	80V	0.056 - 0.07	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
CNL-800-M11	800A	80V	0.053 - 0.067	2700A@80Vdc / 6000A@32Vac	M11	2	●	●	Bonded fiberglass, Nickel-plated copper alloy
